Power Meter
Stock disponible: 70
Power Meter for Energy Management Solutions
- Unlock full Energy Management features for your Pulsar Plus
- Save money with solar EV charging and load balancing
- Easy installation by certified partners
- Avoid unnecessary panel upgrades with dynamic load management
No se pudo cargar la disponibilidad de retiro
| SECURE PAYMENT | U.S. BASED CUSTOMER SERVICE | 3-YEAR LIMITED WARRANTY |
Description
Description

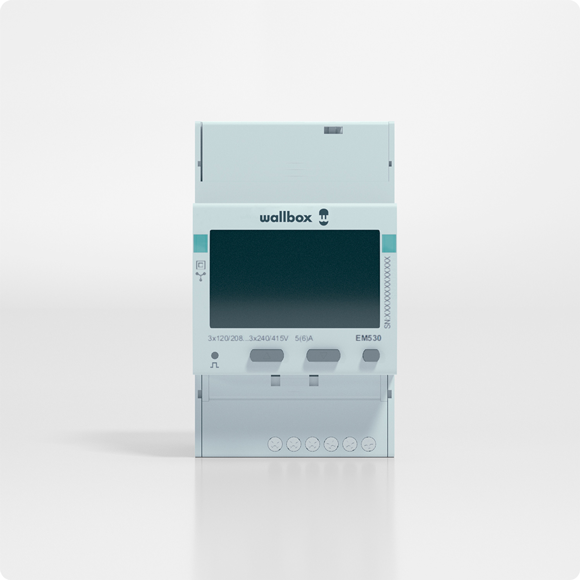

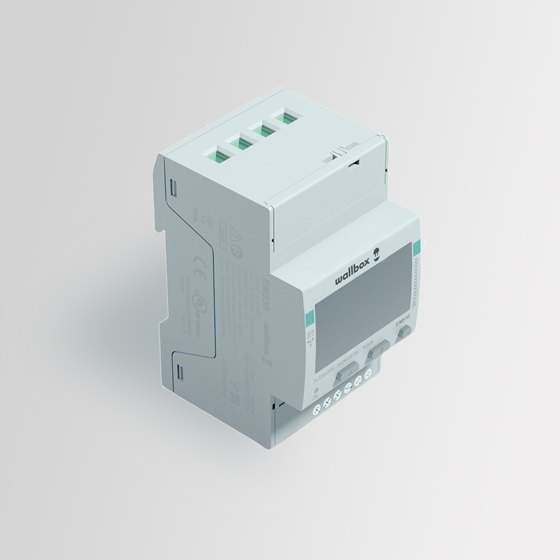

Wallbox Power Meter unlocks our full suite of Energy Management Solutions, and makes your Pulsar Plus future-ready for all software upgrades without needing additional hardware. Enjoy enhanced savings and cleaner energy use, with solar EV charging and dynamic load balancing features.
*Power Meter Enclosure for installations ourside of the main electrical panel also available for purchase.
Technical Specifications
Technical Specifications
| Material | PBT |
| Protection Degree | Front: IP40 / Terminals: IP20 |
| Weight | 280 g / 0.6 lb |
| Dimensions | 1.81"x2.61"x1.38" (53.4 x 90 x 62.4 mm) |
| Operating temperature | From -13 to +131 °F |
| Certifications | CE |
| Rated voltage L-N | 120V to 240V |
| Rated voltage L-L | 208 to 415V |
| Power Supply | Self power supply / <1.3W / 2.6VA |
| Current connection | Via CT (current transformer) |
| Max current with CT | 250A |
| Item weight | 0.62 lbs (9.9 ounces) |
| Country of Origin | Spain |
What’s included
What’s included
- Power Meter

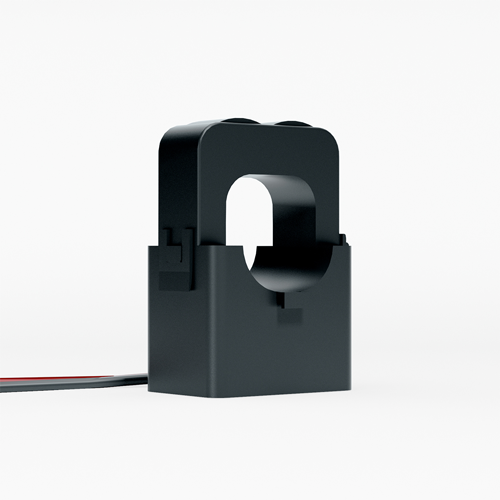

- 2 CT clamps for electrical panels up to 250 Amps
- Product notes sheet
How to install
How to install
The Power Meter can be installed several ways. In most cases, you can fit the power meter in the main electrical panel. If things are too tight, you can pair the power meter with the Enclosure for outside of the panel installation. See the installation guide for more detailed instructions.
Sales & Refunds
Sales & Refunds
If you are not satisfied with the ordered product you receive from wallbox.com, you may return the product within thirty (30) days after receiving it for a refund. Once Wallbox receives your returned item, you will receive a refund within 30 business days excluding shipping costs. Some conditions do apply
Warranty
Warranty
The products you order are protected by the limited warranty as it is amended from time to time, which is incorporated by reference as if fully set forth. Please refer to the warranty for warranty repair or replacement service or a refund if you believe the ordered products you receive are defective. You will need to provide proof of purchase when you return any ordered products.
